F-Theta lenses – Also called scan objectives or flat field objectives are lens systems often used in scan applications. Located in the beam path after the scan head, they perform various functions.When scanning, it also ensures that this focal point is always positioned in the working plane, perpendicular to the objective’s optical axis. Additionally, the position in the working plane approximates the F-Theta condition, meaning the scan length (image height) is approximately proportional to the set scan angle. Deviations from this proportionality can be compensated by controlling the scan mirrors.

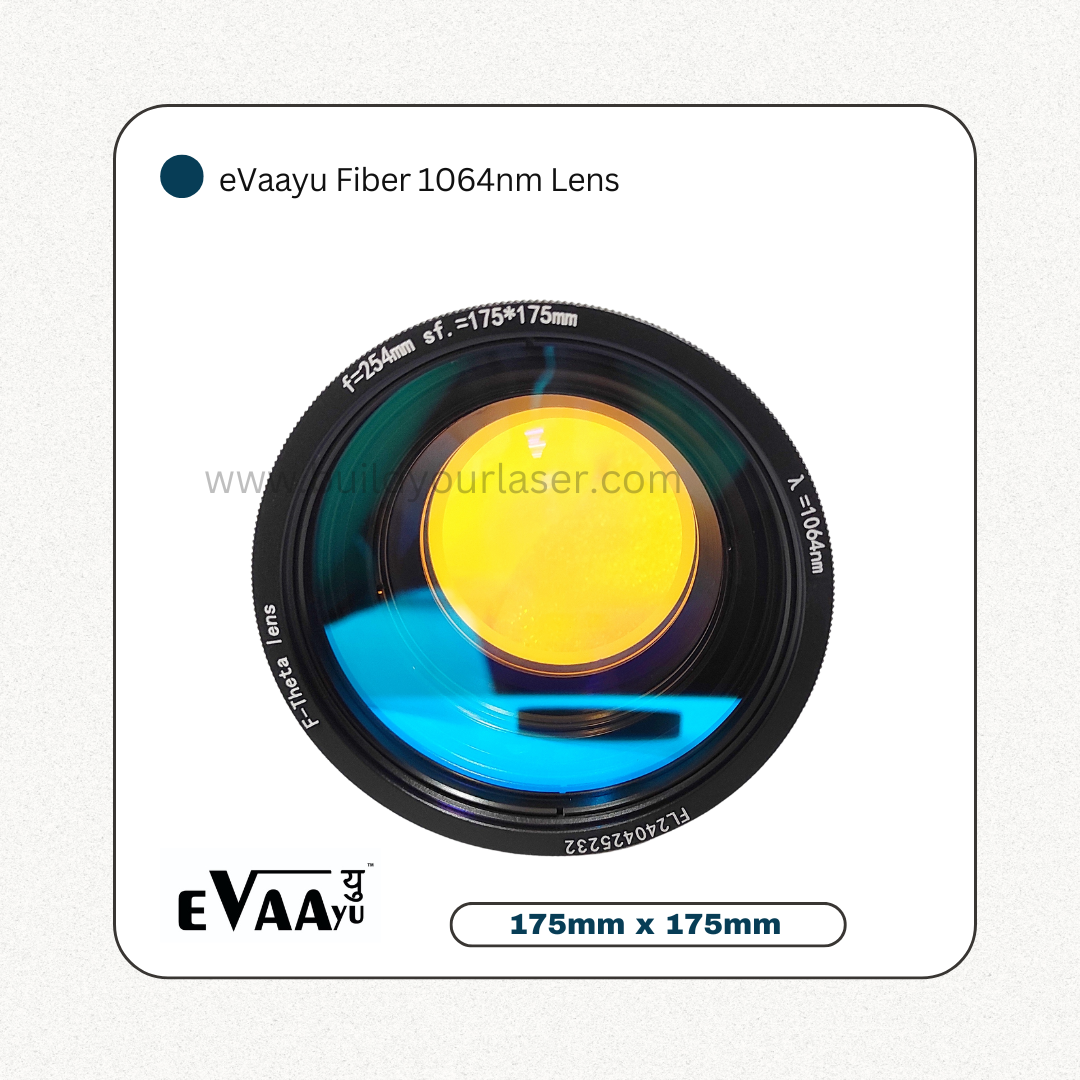

- Technical Specification:
- Working wavelength 1064nm
- Field Scan Area 175 x 175 mm
- Focal Length 254 mm
- Maximum Scanning Angle: ±25/28°
- Special housing designs to optimize performance
- Precisely designed
- Scratch resistance
Advantages of F-theta Lens
- High Precision
The high precision of the f-theta lens makes it suitable for microstructuring, marking and labeling applications of various materials. this high precision is due to the special low-contamination mounting technology and assembly in a certified clean room, which avoids the generation of adhesives and lubricants and ensures the stability and reliability of the lens.
- Durability
The durability of the f-theta lens is due to the special technology in its design and manufacturing process, which can maintain excellent performance in a high-intensity working environment and is suitable for long-term working needs. It is suitable for applications such as microstructuring, marking and labeling of various materials.
- Flexibility
The f-theta lens has the ability to be quickly and easily integrated into any existing system. This flexibility allows it to adapt to different application scenarios and needs and improve work efficiency.
- Suitable For Microstructuring, Marking And Labeling Of Various Materials
The f-theta lens is suitable for microstructuring, marking and labeling of various materials, and can provide high-precision laser material processing to meet diverse application needs
