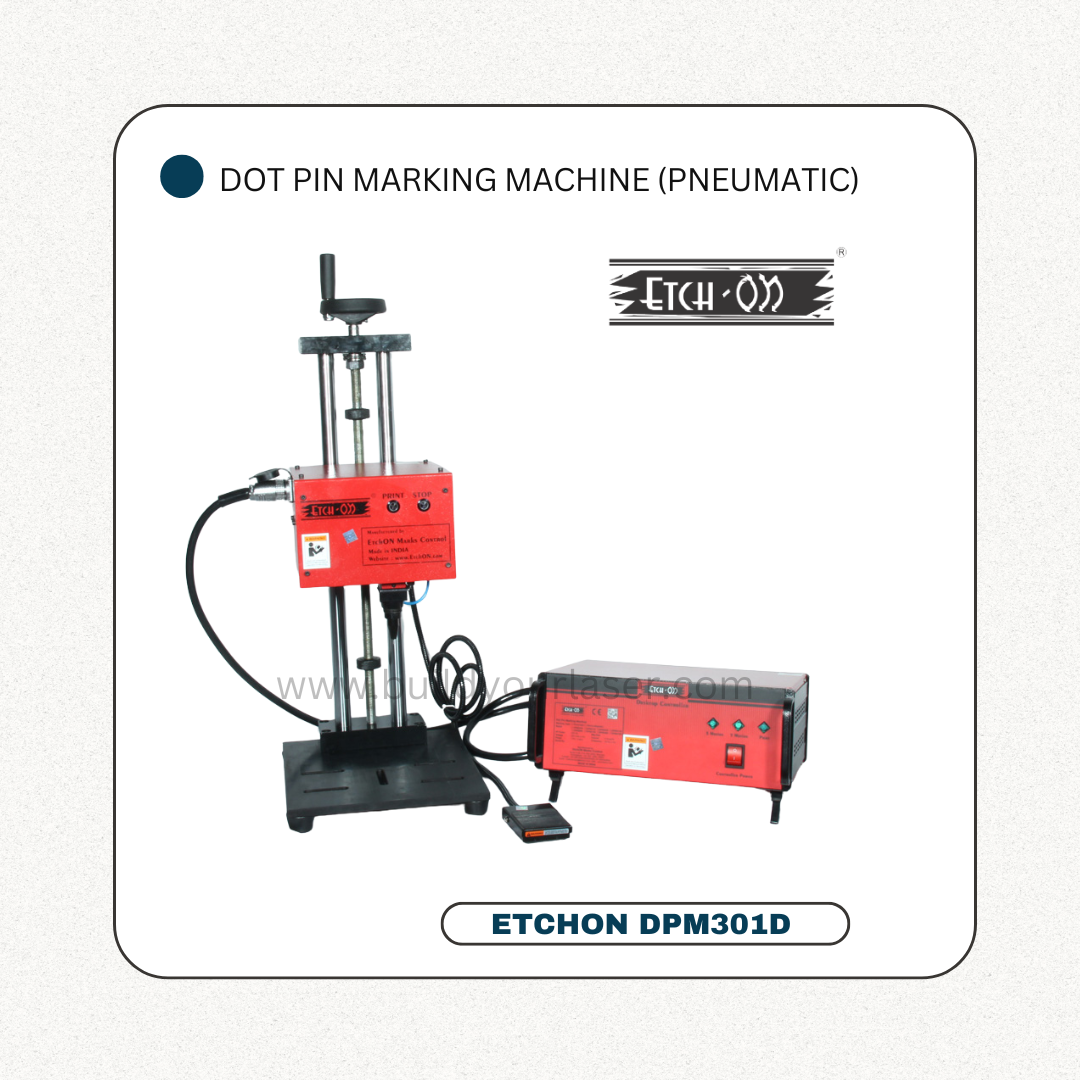

DOT PIN MARKING MACHINE, ETCHON DPM301D (PC)

The DOT PIN MARKER (DPM)…combined with computer, pneumatic and precision machinery techniques. It is an industrial marking equipment which can marking characters, VIN codes, serial no., date, graph, on work piece (metal / non metal materials) permanently. Computer controlled the pin to moves in X-Y plane and marking the logo or text on the certain location of work piece. DPM can mark on plain, circular and circumference of the job.

EtchON Marks Control is a leading international provider of advanced EtchON Dot Pin Marker (DPM) for a range of applications, from engraving to industrial marking. EtchON Dot Pin Markers stand for quality, reliability, and innovation. EtchON offers best-in-class systems that deliver top performance,, and custom solutions that can address every type of engraving and marking need. EtchON DPM is state-of-the-art equipment, designed to deliver quick, clean, quality results for a broad range of needs.

EtchON DPM301D“, This model is perfect startup Pneumatic PC based Domestic Series Dot Pin Marking Machine. Suitable for flat or arc marking marking with printing scope 100 x 100 mm, This machine suitable for dot as well as line marking. The stylus pin dotting on the surface with high frequency and mark logo , it could mark character, alphanumeric ,date , numbers , series No , VIN codes , graphs etc. Here controller is table top with MS fabricated column cover and marking head cover. EtchON support MAKE IN INDIA.

Specifications:

• This is a PC based machine is suitable for small and light metal or plastic work piece.
• This machine is most widely used in Automobile Components and Name plate application as well.

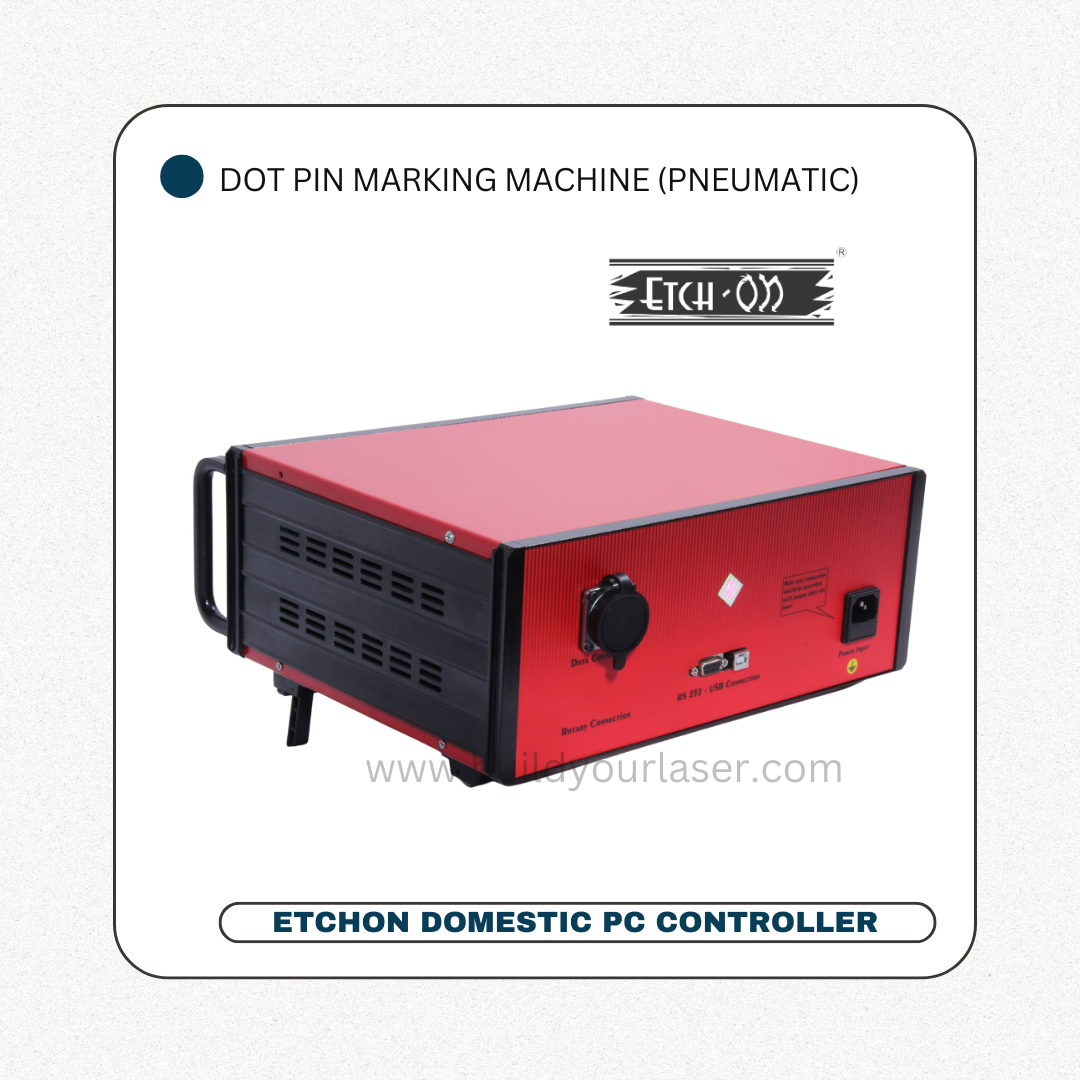

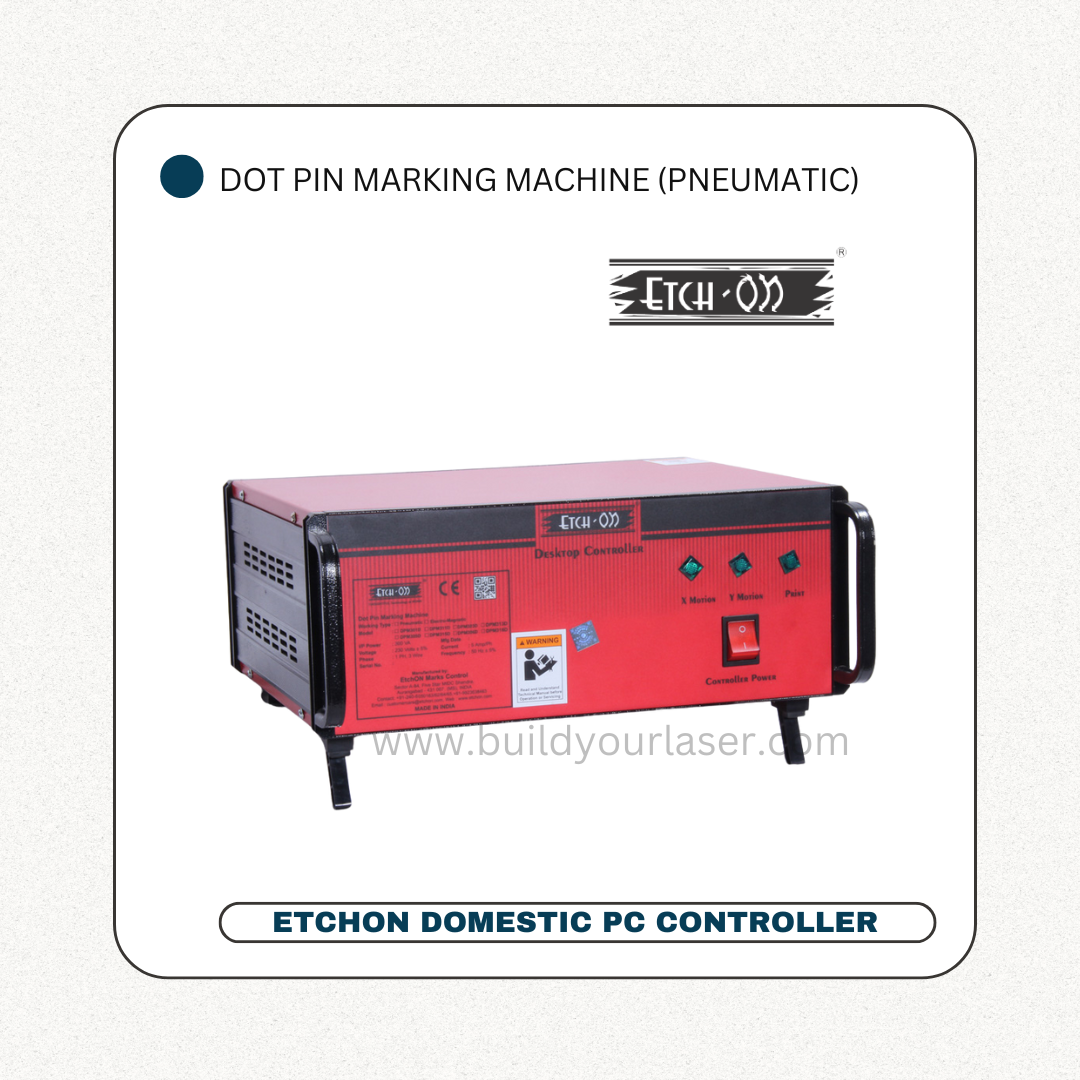

• This machine is equipped with Desktop PC based controller
• This machine supports LINE as DOT engraving, supported by multiple fonts.
• Marking contains all kinds of characters, alphanumeric, date, numbers, serial no, graph etc
• Support linear, angular, radial, inverted and mirror marking.
• Supports .PLT, .SLG, .DWG format graph from AutoCAD or Corel Draw.
• Supports Windows 98, XP, Win7 (32 Bit)
• Machine is made from fabricated MS Material with Guide Rod Column Travel

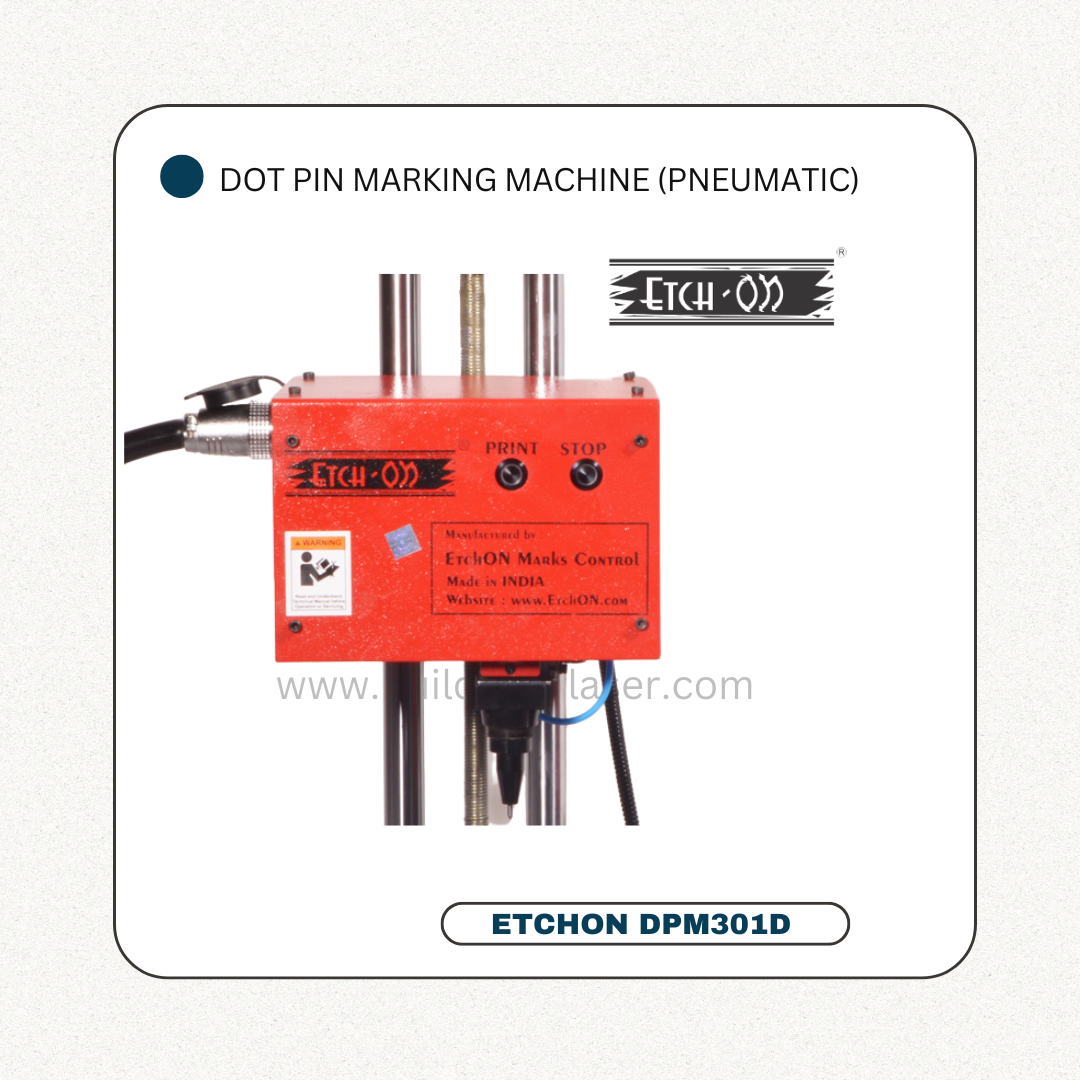

• Marking Head is made from Genuine components whereas buttons used are stands to IP60 norms which is oil and dust proof.
• Data cable is made from Steel Connector which is also free from oil and dust.
• Manufactured in India with CE Certification.

Material : Aluminum, Iron , Copper, Stainless Steel, Coated or plated material, Nylon, ABS, Poly carbonate, PVC, Most Metallic materials mark well.

Application Industry: Automobile or bodywork of motorcycle, car frame, automotive chassis, engine, and mechanical part, machine tool, metal pipe, gear, pump body, valve, various hardness plastic products.
